Detailní popis produktu
Specifikace
| Rám |
Scale Alloy 6061 Custom Butted Tubing Boost QR 5x141mm / Tapered Headtube / BB92 Internal Cable Routing / replaceable hanger |
| Vidlice |
RockShox Judy Silver TK Solo Air 46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel |
| Systém tlumení |
SCOTT RideLoc Remote |
| Přehazovačka |
SRAM SX / Eagle 12 Speed |
| Řazení |
SRAM SX Eagle Trigger |
| Kliky |
SRAM SX Eagle DUB Boost 32T |
| Středové složení |
SRAM DUB PF integrated / shell 41x92mm |
| Řetěz |
SRAM CN SX Eagle |
| Kazeta |
SRAM SX-PG1210 / 11-50 T |
| Brzdy |
Shimano MT200 Disc |
| Rotor |
Shimano SM-RT10 CL / 180/F and 160/R |
| Řidítka |
Syncros Alloy 6061 T shape Flat / 9° / 740mm |
| Představec |
Syncros Alloy 6061 oversized 31.8mm / 1 1/8" / 6° angle |
| Sedlovka |
Syncros / 31.6x400mm |
| Sedlo |
Syncros Belcarra Regular 2.5 |
| Hlavové složení |
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm |
| Přední náboj |
Formula CL-51 |
| Zadní náboj |
Formula CL-2241 / Boost QR 5x141mm |
| Výplet |
Stainless Black 15G / 1.8mm |
| Ráfky |
Syncros / 32H |
| Front Tire |
Maxxis Rekon Race / 2.25" / 60TPI |
| Rear Tire |
Maxxis Rekon Race / 2.25" / 60TPI |
| Pedály |
Femin FP873ZU |
| Hmotnost v kg cca |
13.20 |
| Max. System Weight |
128 kg The overall weight includes the bike the rider the equipment and possible additional luggage. |
Klíčové vlastnosti
- Scale Alloy 6061 Frame Boost QR
- RockShox Judy 100mm
- RideLoc 2-Position Remote
- SRAM SX 12 Speed
- Shimano Disc Brakes
- Syncros Rims
- Maxxis Rekon Race Tires

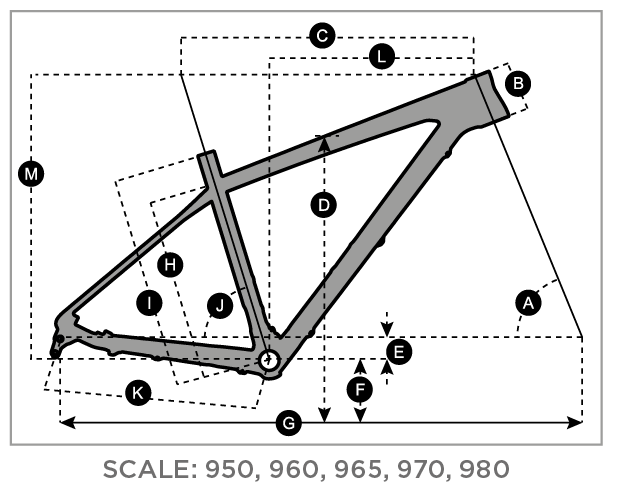

Geometrie rámu
| A |
head tube angle |
|
|
|
|
|
|
69.5 ° |
|
69.5 ° |
|
69.5 ° |
|
69.5 ° |
|
69.5 ° |
|
|
|
| B |
head tube length |
|
|
|
|
|
|
100.0 mm |
3.9 in |
100.0 mm |
3.9 in |
115.0 mm |
4.5 in |
125.0 mm |
4.9 in |
135.0 mm |
5.3 in |
|
|
| C |
top tube horizontal |
|
|
|
|
|
|
575.0 mm |
22.6 in |
600.0 mm |
23.6 in |
620.0 mm |
24.4 in |
640.0 mm |
25.2 in |
660.0 mm |
26.0 in |
|
|
| D |
standover height |
|
|
|
|
|
|
748.0 mm |
29.4 in |
776.0 mm |
30.6 in |
805.0 mm |
31.7 in |
840.0 mm |
33.1 in |
874.0 mm |
34.4 in |
|
|
| E |
BB offset |
|
|
|
|
|
|
-58.0 mm |
-2.3 in |
-58.0 mm |
-2.3 in |
-58.0 mm |
-2.3 in |
-58.0 mm |
-2.3 in |
-58.0 mm |
-2.3 in |
|
|
| F |
BB height |
|
|
|
|
|
|
312.0 mm |
12.3 in |
312.0 mm |
12.3 in |
312.0 mm |
12.3 in |
312.0 mm |
12.3 in |
312.0 mm |
12.3 in |
|
|
| G |
wheel base |
|
|
|
|
|
|
1,092.1 mm |
43.0 in |
1,118.0 mm |
44.0 in |
1,138.2 mm |
44.8 in |
1,159.0 mm |
45.6 in |
1,120.0 mm |
44.1 in |
|
|
| H |
BB center to toptube center |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| I |
BB center to top of seattube |
|
|
|
|
|
|
390.0 mm |
15.4 in |
440.0 mm |
17.3 in |
480.0 mm |
18.9 in |
530.0 mm |
20.9 in |
580.0 mm |
22.8 in |
|
|
| J |
seat angle |
|
|
|
|
|
|
73.6 ° |
|
73.6 ° |
|
73.6 ° |
|
73.6 ° |
|
73.6 ° |
|
|
|
| K |
chainstay |
|
|
|
|
|
|
440.0 mm |
17.3 in |
440.0 mm |
17.3 in |
440.0 mm |
17.3 in |
440.0 mm |
17.3 in |
440.0 mm |
17.3 in |
|
|
| L |
reach |
|
|
|
|
|
|
396.8 mm |
15.6 in |
421.8 mm |
16.6 in |
437.7 mm |
17.2 in |
455.0 mm |
17.9 in |
492.2 mm |
19.4 in |
|
|
| M |
stack |
|
|
|
|
|
|
605.3 mm |
23.8 in |
605.3 mm |
23.8 in |
619.4 mm |
24.4 in |
628.7 mm |
24.8 in |
638.1 mm |
25.1 in |
|
|
| N |
stem length |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
