Detailní popis produktu
Specifikace
| Rám |
Sub Cross Alloy 6061 / Custom Butted tubing / Internal cable routing / Sub Cross Men/Lady Geometry / SCOTT urban kit ready |
| Vidlice |
Suntour NEX HLO / Hyd. Lockout / 63mm travel |
| Přehazovačka |
Shimano Deore RD-T6000-SGS / Shadow Type / 30Speed |
| Presmykač |
Shimano Deore FD-T6010 / 34.9mm |
| Řazení |
Shimano Deore SL-M6000-10 / R-fire plus 2 / w/gear indicator |
| Kliky |
Shimano FC-T521 / 48x36x26 / w/CG |
| Středové složení |
Shimano BB-ES300 / Cartridge Type |
| Řetěz |
KMC X10-1 |
| Kazeta |
Shimano CS-HG500-10 11-32 T |
| Brzdy |
Shimano MT200 / Hydr. Disc |
| Rotor |
Shimano SM-RT10 CL rotor / F&R 160mm |
| Řidítka |
Syncros 3.0 / 31.8 / Men: Tbar/660mm/9° bend / Lady: 660mm/15° bend |
| Představec |
Syncros 3.0 / 7° / Black |
| Sedlovka |
Syncros 3.0 / 31.6mm / 350mm / Black |
| Sedlo |
Syncros UC2.5 / UC3.0W |
| Hlavové složení |
Syncros OE Press Fit / 1 1/8" OD 50mm / ID 44mm |
| Přední náboj |
Formula CL51 |
| Zadní náboj |
Shimano FH-TX5058 |
| Výplet |
15 G / stainless / black |
| Ráfky |
Syncros X-20 Disc / 32H / black |
| Front Tire |
Kenda Booster / 700x45C / 30 TPI |
| Rear Tire |
Kenda Booster / 700x45C / 30 TPI |
| Pedály |
Feimin FP-873-ZU |
| Hmotnost v kg cca |
13.40 |
| Max. System Weight |
128 kg The overall weight includes the bike the rider the equipment and possible additional luggage. |
Klíčové vlastnosti
- Sub Cross Men/Lady Alloy Frame
- Suntour NEX HLO 63mm Fork
- Shimano Deore T6000 30 Speed
- Shimano Hyd. Brakes
- Kenda Booster

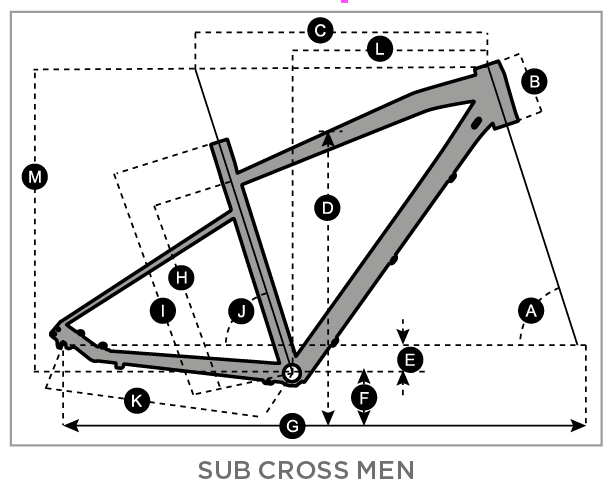

Geometrie rámu
|
|
|
|
|
|
|
|
S |
|
M |
|
L |
|
XL |
|
XXL |
|
|
|
| A |
head tube angle |
|
|
|
|
|
|
70.0 ° |
|
70.0 ° |
|
70.0 ° |
|
70.0 ° |
|
70.0 ° |
|
|
|
| B |
head tube length |
|
|
|
|
|
|
105.0 mm |
4.1 in |
125.0 mm |
4.9 in |
145.0 mm |
5.7 in |
165.0 mm |
6.5 in |
185.0 mm |
7.3 in |
|
|
| C |
top tube horizontal |
|
|
|
|
|
|
567.0 mm |
22.3 in |
577.0 mm |
22.7 in |
592.0 mm |
23.3 in |
608.0 mm |
23.9 in |
620.0 mm |
24.4 in |
|
|
| D |
standover height |
|
|
|
|
|
|
767.0 mm |
30.2 in |
793.0 mm |
31.2 in |
817.0 mm |
32.2 in |
847.0 mm |
33.3 in |
876.0 mm |
34.5 in |
|
|
| E |
BB offset |
|
|
|
|
|
|
56.0 mm |
2.2 in |
56.0 mm |
2.2 in |
56.0 mm |
2.2 in |
56.0 mm |
2.2 in |
56.0 mm |
2.2 in |
|
|
| F |
BB height |
|
|
|
|
|
|
406.0 mm |
16.0 in |
406.0 mm |
16.0 in |
406.0 mm |
16.0 in |
406.0 mm |
16.0 in |
406.0 mm |
16.0 in |
|
|
| G |
wheel base |
|
|
|
|
|
|
1,078.0 mm |
42.4 in |
1,084.0 mm |
42.7 in |
1,097.0 mm |
43.2 in |
1,110.0 mm |
43.7 in |
1,123.0 mm |
44.2 in |
|
|
| H |
BB center to toptube center |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| I |
BB center to top of seattube |
|
|
|
|
|
|
450.0 mm |
17.7 in |
480.0 mm |
18.9 in |
510.0 mm |
20.1 in |
550.0 mm |
21.7 in |
590.0 mm |
23.2 in |
|
|
| J |
seat angle |
|
|
|
|
|
|
73.0 ° |
|
72.5 ° |
|
72.3 ° |
|
72.0 ° |
|
72.0 ° |
|
|
|
| K |
chainstay |
|
|
|
|
|
|
456.0 mm |
18.0 in |
456.0 mm |
18.0 in |
456.0 mm |
18.0 in |
456.0 mm |
18.0 in |
456.0 mm |
18.0 in |
|
|
| L |
reach |
|
|
|
|
|
|
388.3 mm |
15.3 in |
386.8 mm |
15.2 in |
393.5 mm |
15.5 in |
399.8 mm |
15.7 in |
405.6 mm |
16.0 in |
|
|
| M |
stack |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| N |
stem length |
|
|
|
|
|
|
80.0 mm |
3.1 in |
90.0 mm |
3.5 in |
90.0 mm |
3.5 in |
100.0 mm |
3.9 in |
100.0 mm |
3.9 in |
|
|
| 0 |
trail |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
