    Domů / ELEKTROKOLA / Krosová, Treková, Fitness / Pánská / SCOTT SUB CROSS eRIDE 10 MEN

    SCOTT SUB CROSS eRIDE 10 MEN

    Kód: SCO280803009 SCO280803006 Zvolte variantu
    Akce Tip
    Značka: Scott
    – 87 990 Kč od 82 450 Kč - –20 % až –20 %
    SCOTT SUB CROSS eRIDE 10 MEN
    – 87 990 Kč od 82 450 Kč - –20 % až –20 % 82 450 Kč 69 990 Kč od 69 990 Kč
    Na dotaz Na dotaz Zvolte variantu
    Velikost
    Zvolená varianta není k dispozici. Reset vybraných parametrů.

     AKČNÍ CENA PLATÍ PŘI PLATBĚ V HOTOVOSTI

    Manual.pdf

    Detailní informace

    Detailní popis produktu

    Specifikace

    Rám Sub eRIDE 6061 Alloy
    Vidlice SUNTOUR NVX 30 NLO DS QR 700C STEEL TAPERED
    Drive Unit Bosch Performance CX
    Baterie PowerTube 625Wh
    Display Purion Display
    Charger 2A Charger
    Přehazovačka Shimano Deore 10 Speed
    Řazení Shimano Deore 10 Speed
    Kliky Miranda 172,5MM
    Převodník 38T Chainflow / Chainprotector
    Řetěz KMC E10S
    Kazeta Shimano CSM4100 11-42T
    Brzdové páky Shimano BR-M200 Disc
    Brzdy Shimano BR-M200 Disc
    Řidítka Syncros UC3.0 680mm / 10° bend
    Představec Syncros UC 3.0 adjustable
    Sedlovka Syncros 3.0 / 31.6mm / 350mm
    Sedlo Selle Royal Essenza
    Hlavové složení GW semi integrated
    Přední náboj Shimano HBMT200B 32H QR CL
    Zadní náboj Shimano FHMT200B 32H QR CL
    Výplet BLACK spokes * F: 14G/ R: 13G
    Ráfky Cross X17 Disc 32h
    Rear Tire Schwalbe Smart Sam 29x2.25
    Rack Ursus Mooi Central kickstand
    Pedály VPE-506
    Extra AXA Battery Lock
    Hmotnost v kg cca 25.10
    Max. System Weight 128 kg The overall weight includes the bike the rider the equipment and possible additional luggage.

    Klíčové vlastnosti

    1. Sub eRIDE 6061 Alloy
    2. SUNTOUR NVX NLO DS
    3. Shimano Deore 10 Speed
    4. Bosch CX, integr. 625Wh PowerTube
    5. Shimano Disc Brakes
    6. Schwalbe Smart Sam 29x2.25
    7. Selle Royal Essenza saddle

    Technologie

    BOSCH POWER TUBE

    Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! Most of our frames are compatible with a 625Wh battery, so feel free to upgrade your 400 or 500Wh for a bigger Power Tube.

    BOSCH PERFORMANCE CX GEN 4 DRIVE UNIT

    The new Performance CX generation is now 48% smaller and 25% lighter compare to the previous generation. More compact but no less powerful, the new Bosch Performance CX Generation 4 comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB mode which automatically adapts the assistance like an automatic gearbox does in a car.

    eRIDE ADVANCED DESIGN

    With this new E-Bike generation, the design has been pushed further than ever before. More than a battery integrated into the frame, we see the bike as a system where every part must be taken into consideration. Therefore, to improve the integration, we have worked a lot on the line continuity but also on the design balance from the headtube to the dropouts. Enjoy a bike with a unique character!

    Rack & fenders

    Feel free to install a rack and the corresponding fender set. The frame has dedicated fixation points for a clean and reliable solution. Racks and fenders are available on the Accessories page of the website.

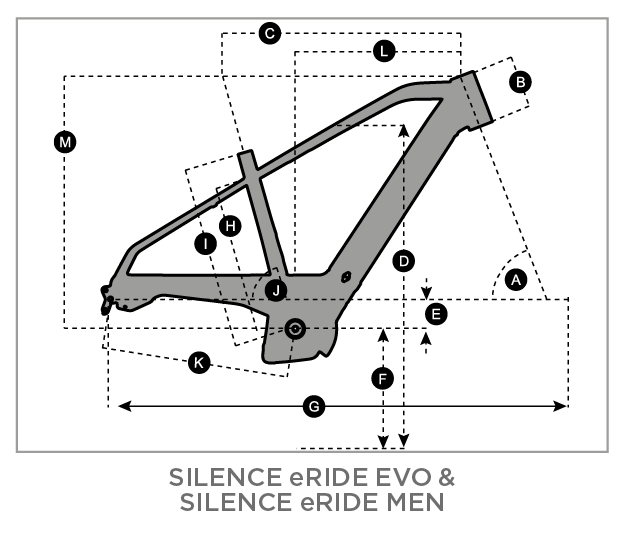

    Geometrie rámu

    S M L XL
    A head tube angle 69.5 ° 70.0 ° 70.5 ° 70.5 °
    B head tube length 130.0 mm 5.1 in 140.0 mm 5.5 in 160.0 mm 6.3 in 185.0 mm 7.3 in
    C top tube horizontal 580.0 mm 22.8 in 600.0 mm 23.6 in 620.0 mm 24.4 in 640.0 mm 25.2 in
    D standover height 775.0 mm 30.5 in 804.0 mm 31.7 in 831.0 mm 32.7 in 869.0 mm 34.2 in
    E BB offset 75.0 mm 3.0 in 75.0 mm 3.0 in 75.0 mm 3.0 in 75.0 mm 3.0 in
    F BB height 440.5 mm 17.3 in 440.5 mm 17.3 in 440.5 mm 17.3 in 440.5 mm 17.3 in
    G wheel base 1,142.0 mm 45.0 in 1,149.0 mm 45.2 in 1,165.0 mm 45.9 in 1,187.0 mm 46.7 in
    H BB center to toptube center
    I BB center to top of seattube 440.0 mm 17.3 in 480.0 mm 18.9 in 520.0 mm 20.5 in 560.0 mm 22.0 in
    J seat angle 74.5 ° 74.5 ° 74.5 ° 74.5 °
    K chainstay 480.0 mm 18.9 in 480.0 mm 18.9 in 480.0 mm 18.9 in 480.0 mm 18.9 in
    L reach 405.0 mm 15.9 in 422.0 mm 16.6 in 436.0 mm 17.2 in 450.0 mm 17.7 in
    M stack 630.0 mm 24.8 in 641.0 mm 25.2 in 662.0 mm 26.1 in 685.0 mm 27.0 in
    N stem length 110.0 mm 4.3 in 110.0 mm 4.3 in 110.0 mm 4.3 in 110.0 mm 4.3 in
    0 trail 89.5 mm 3.5 in 86.0 mm 3.4 in 82.5 mm 3.2 in 82.5 mm 3.2 in

    Doplňkové parametry

    Kategorie: Pánská
    Modelový rok: 2021
