    Domů / ELEKTROKOLA / Horská / Celoodpružená / SCOTT STRIKE eRIDE 910

    SCOTT STRIKE eRIDE 910

    Kód: SCO280731007
    Akce Tip
    Značka: Scott
    159 450 Kč –25 %
    SCOTT STRIKE eRIDE 910
    159 450 Kč –25 % 119 450 Kč
    Na dotaz
    Velikost
    Zvolená varianta není k dispozici. Reset vybraných parametrů.

    AKČNÍ CENA PLATÍ PŘI PLATBĚ V HOTOVOSTI



    Manual.pdf

    Detailní informace

    Detailní popis produktu

    Specifikace

    Rám Alloy Frame / Virtual 4 link kinematic VLK 27.5" and 29" compatible / geo adj. / Boost 148x12mm 140mm travel / Bosch Gen4 / Integr. removable Battery Tapered Headtube E2, Central Kickstand Mount Range Booster Ready
    Travel Front: 140mm / Rear: 140mm
    Vidlice FOX 34 Rhythm Air / eMTB+ Grip 3 / 3-Modes / 15x110mm QR axle tapered steerer / Reb. Adj. / Lockout / 140mm travel
    Zadní tlumič FOX Float EVOL Performance Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 140mm / 185x50mm
    Systém tlumení SCOTT TwinLoc Suspension System 3 modes front and rear / integ. Grip clamp
    Drive Unit Bosch Performance CX EU: 25kmh / US: 20mph
    Baterie PowerTube 625Wh
    Display Bosch Purion
    Charger 4A Charger
    Přehazovačka Shimano XT / 12 Speed
    Řazení Shimano SL-M8100
    Kliky FSA CK-745 165mm / 34T
    Chainguide SCOTT Custom
    Převodník FSA WB345 / 34T / DM / Steel
    Řetěz Shimano CN-M8100
    Kazeta Shimano CS-M8100 / 10-51 T
    Brzdy Shimano BR-MT520 4 Piston
    Rotor Front: SM-RT30 CL 203mm / Rear: RT-EM300 CL 203mm
    Řidítka Syncros Hixon 1.5 Rise / Alloy 2014D.B. 20mm rise / 8° / 760mm Syncros Comfort lock-on grips
    Představec Syncros FL1.5 / 2014 Alloy L-Shape Spacer & Top Cap / 31.8mm / 6° / 1 1/8"
    Sedlovka FOX Transfer Dropper Post 31.6mm / S size 100mm / M size 125mm / L size 150mm / XL size 175mm
    Sedlo Syncros ER1.5 / CRMO rails
    Hlavové složení Syncros ER2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm
    Přední náboj Shimano HB-MT400-B CL / 15x110mm
    Zadní náboj Shimano FH-MT410-B CL / Boost 12x148mm
    Výplet Stainless Black
    Ráfky Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
    Front Tire Maxxis Rekon / 29x2.6" / 120TPI Folding EXO+ / TR Tubeless ready 3C Maxx Terra
    Rear Tire Maxxis Rekon / 29x2.6" / 120TPI Folding EXO+ / TR Tubeless ready 3C Maxx Terra
    Světla Bosch Light Cable pre-installed F&R
    Extra Syncros Trail Fender
    Hmotnost v kg cca 23.10
    Max. System Weight 128 kg The overall weight includes the bike the rider the equipment and possible additional luggage.

    Klíčové vlastnosti

    1. Strike eRIDE Alloy Frame
    2. FOX 34 Rhythm 140mm
    3. FOX Float EVOL, 140mm, TwinLoc
    4. Shimano XT 12 Speed
    5. Bosch CX, PowerTube up to 1125Wh
    6. Shimano 4 Piston Disc Brakes
    7. Maxxis Rekon Folding Tires
    8. FOX Dropper Post, Syncros Parts
    9. Bosch Light Cable F&R

    Technologie

    One Frame, Two Wheel Sizes

    With our mountain bikes, we try to achieve ultimate versatility. These specific models can switch from 27.5" to 29" or from 24" to 26" wheels with nothing more than the flip of a chip. No need to change the fork, all you need to do is flip a shock mount chip, change your wheels and off you go. The flip chip allows us to maintain a similar BB height when switching from one wheel size to the other which is key to keeping handling similar for both wheel sizes.

    BOSCH POWER TUBE

    Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! Most of our frames are compatible with a 625Wh battery, so feel free to upgrade your 400 or 500Wh for a bigger Power Tube.

    SCOTT eRIDE RANGE EXTENDER- MTB

    SCOTT eRIDE engineering team has developed a specific mount which is fixed on the bottle cage slots. A standard 500Wh Bosch battery can be added on the Range Extender mount. This result in a total of 1125Wh. To recharge, just one charger is needed. The Bosch digital display will take into consideration both batteries. Focus on your journey and not on your battery level! Compatible with the Genius/Strike/Aspect/Axis eRIDE.

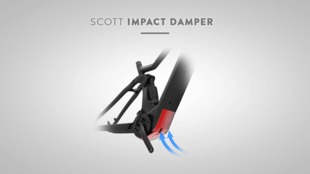

    SCOTT IMPACT DAMPER

    The bottom bracket area is exposed to flying rocks or other potential impacts, therefore we have developed our own specific skid plate, the “Impact Damper”. It is reinforced to handle impacts, is covered with a rubber layer to reduce noise and is ventilated to improve drive unit airflow.

    BOSCH PERFORMANCE CX GEN 4 DRIVE UNIT

    The new Performance CX generation is now 48% smaller and 25% lighter compare to the previous generation. More compact but no less powerful, the new Bosch Performance CX Generation 4 comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB mode which automatically adapts the assistance like an automatic gearbox does in a car.

    eRIDE ADVANCED DESIGN

    With this new E-Bike generation, the design has been pushed further than ever before. More than a battery integrated into the frame, we see the bike as a system where every part must be taken into consideration. Therefore, to improve the integration, we have worked a lot on the line continuity but also on the design balance from the headtube to the dropouts. Enjoy a bike with a unique character!

    Rack & fenders

    Feel free to install a rack and the corresponding fender set. The frame has dedicated fixation points for a clean and reliable solution. Racks and fenders are available on the Accessories page of the website.

    Light ready

    In order to mount a front or rear light, we have already routed the cables in the frame, and there is no need for an extra battery – the power comes straight from the drive unit battery.

    Geometrie rámu

    S / 900 S / 700 M / 900 M / 700 L / 900 L / 700 XL / 900 XL / 700
    LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting LOW BB Setting HIGH BB Setting
    A head tube angle 64.8 ° 65.4 ° 64.8 ° 65.4 ° 65.0 ° 65.6 ° 65.0 ° 65.6 °
    B head tube length 120.0 mm 4.7 in 120.0 mm 4.7 in 125.0 mm 4.9 in 125.0 mm 4.9 in 135.0 mm 5.3 in 135.0 mm 5.3 in 145.0 mm 5.7 in 145.0 mm 5.7 in
    C top tube horizontal 585.0 mm 23.0 in 583.4 mm 23.0 in 605.0 mm 23.8 in 603.4 mm 23.8 in 635.0 mm 25.0 in 633.3 mm 24.9 in 665.0 mm 26.2 in 663.3 mm 26.1 in
    D standover height 762.4 mm 30.0 in 748.8 mm 29.5 in 766.6 mm 30.2 in 753.3 mm 29.7 in 798.1 mm 31.4 in 785.4 mm 30.9 in 809.8 mm 31.9 in 797.4 mm 31.4 in
    E BB offset -30.0 mm -1.2 in -22.1 mm -0.9 in -30.0 mm -1.2 in -22.1 mm -0.9 in -30.0 mm -1.2 in -22.0 mm -0.9 in -30.0 mm -1.2 in -21.9 mm -0.9 in
    F BB height 347.0 mm 13.7 in 337.9 mm 13.3 in 347.0 mm 13.7 in 337.9 mm 13.3 in 347.0 mm 13.7 in 338.0 mm 13.3 in 347.0 mm 13.7 in 338.1 mm 13.3 in
    G wheel base 1,215.2 mm 47.8 in 1,213.7 mm 47.8 in 1,236.1 mm 48.7 in 1,234.6 mm 48.6 in 1,258.4 mm 49.5 in 1,256.9 mm 49.5 in 1,290.2 mm 50.8 in 1,288.7 mm 50.7 in
    H BB center to toptube center
    I BB center to top of seattube 410.0 mm 16.1 in 410.0 mm 16.1 in 440.0 mm 17.3 in 440.0 mm 17.3 in 490.0 mm 19.3 in 490.0 mm 19.3 in 540.0 mm 21.3 in 540.0 mm 21.3 in
    J seat angle 75.4 ° 76.0 ° 75.4 ° 76.0 ° 74.8 ° 75.4 ° 74.8 ° 75.4 °
    K chainstay 465.0 mm 18.3 in 462.8 mm 18.2 in 465.0 mm 18.3 in 462.8 mm 18.2 in 465.0 mm 18.3 in 462.8 mm 18.2 in 465.0 mm 18.3 in 462.8 mm 18.2 in
    L reach 421.8 mm 16.6 in 428.3 mm 16.9 in 440.6 mm 17.3 in 447.1 mm 17.6 in 460.7 mm 18.1 in 467.2 mm 18.4 in 488.3 mm 19.2 in 494.7 mm 19.5 in
    M stack 626.6 mm 24.7 in 622.2 mm 24.5 in 631.2 mm 24.8 in 626.6 mm 24.7 in 641.4 mm 25.3 in 636.7 mm 25.1 in 650.4 mm 25.6 in 645.6 mm 25.4 in
    N stem length 50.0 mm 2.0 in 50.0 mm 2.0 in 50.0 mm 2.0 in 50.0 mm 2.0 in 60.0 mm 2.4 in 60.0 mm 2.4 in 70.0 mm 2.8 in 70.0 mm 2.8 in
    0 trail 128.8 mm 5.1 in 120.2 mm 4.7 in 128.8 mm 5.1 in 120.2 mm 4.7 in 127.2 mm 5.0 in 118.8 mm 4.7 in 127.2 mm 5.0 in 118.8 mm 4.7 in

    Doplňkové parametry

    Kategorie: Celoodpružená
    Modelový rok: 2021
