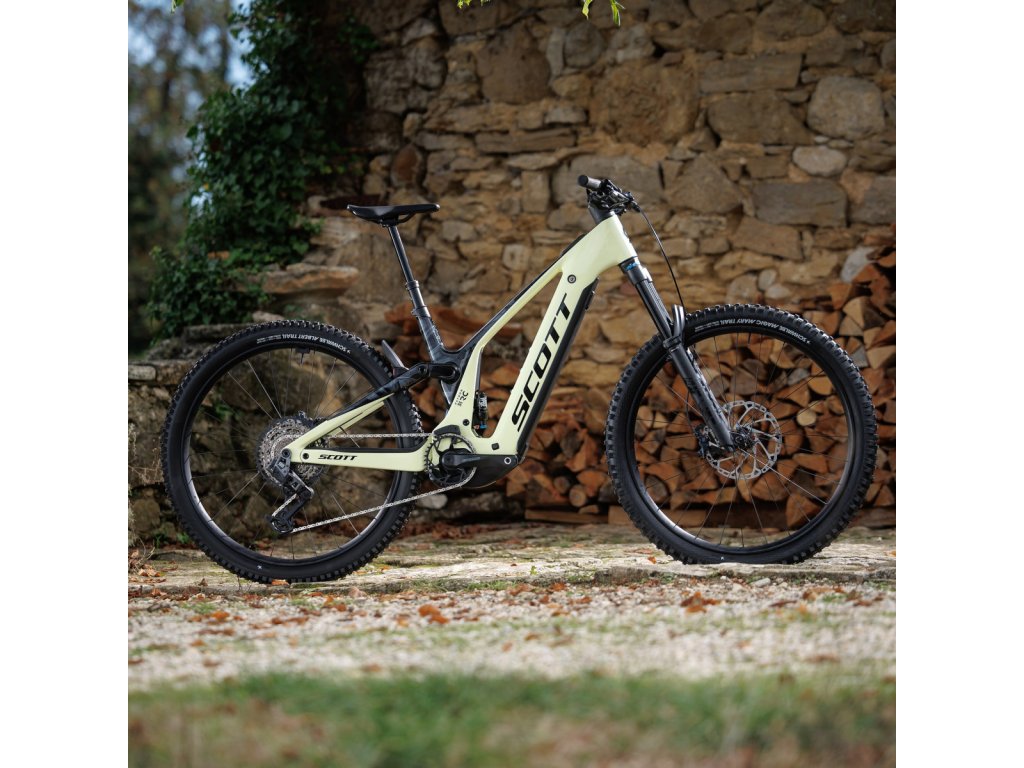

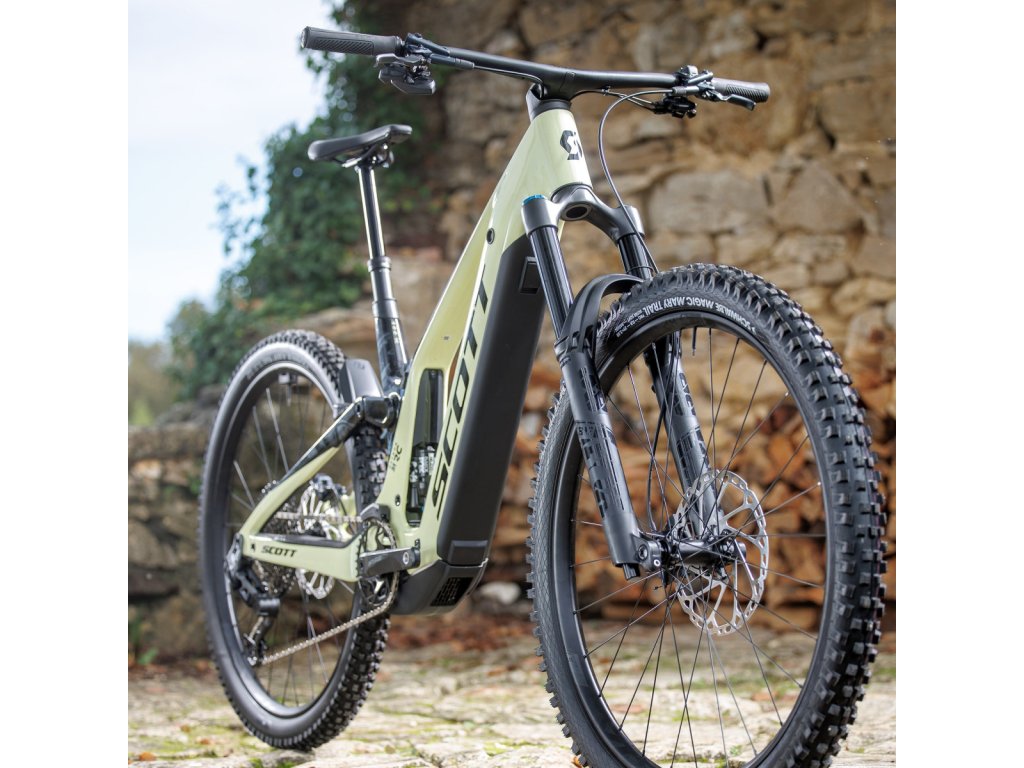

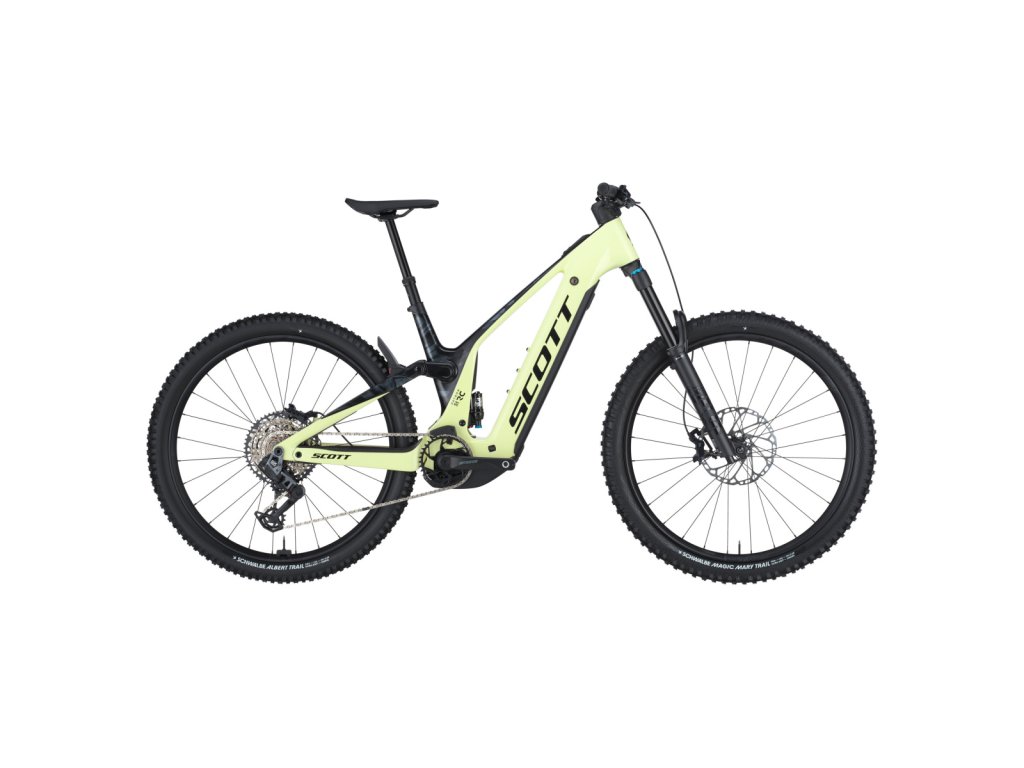

SCOTT PATRON ST 900 RC LUMINARY, vel. L
Kód: SCO4235508093010Související produkty
Detailní popis produktu
Specifikace
| Rám | Carbon Frame Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline Bosch PowerMore Ready |
|---|---|
| Zdvih | Front: 170mm / Rear: 150mm |
| Vidlice | FOX 38 Perf. ELITE Grip X2 Air / HSC - LSC - HSR- LSR adjustable / QR Axle 15x110mm 44mm offset / tapered steerer 170mm travel |
| Tlumič | FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 150-100-Climb / T185X55mm |
| Ovládací systém | TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes |
| Pohonná jednotka | Bosch Performance CX EU: 25kmh / INT: 20mph |
| Baterie | PowerTube 800Wh |
| Displej | Bosch System Controller Mini Remote |
| Nabíječka | 4A Charger |
| Přehazovačka | SRAM S1000 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
| Řazení | SRAM AXS Rocker Pod Controller |
| Kliky | FSA Alloy |
| Vodítko řetězu | e*thirteen / e*spec Slider |
| Převodník | SRAM Eagle Transmission 34T chainring |
| Řetěz | SRAM CN GX Eagle Transmission |
| Kazeta | SRAM Eagle XS 1270 Transmission 10-52 |
| Brzdy | Shimano SLX / BR-M7120 4 Piston |
| Rotor | Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm |
| Řidítka | Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips |
| Sedlovka | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L size 180mm / XL size 210mm |
| Sedlovka | Syncros Tofino-E 1.5 Regular Titanium rails |
| Hlavové složení | Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Sada kol | Syncros Revelstoke-E 1.5 CL F: 15x110mm R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool |
| Přední plášť | Schwalbe Magic Mary 29x2.5" SuperGravity / PSF / Ultra Soft Tubeless ready 120TPI Foldable Bead |
| Zadní plášť | Schwalbe Explore 29x2.5" SuperGravity / PSF / Soft Tubeless ready 120TPI Foldable Bead |
| Světla | Syncros integrated rear fender light Front Light Cable pre-installed |
| Extra | Syncros Fork Fender SRAM AXS Extension Cord |
| Hmotnost v kg (cca) | 24.6 |
| Hmotnost v lb (cca) | 54.23 |
| Max. systémová hmotnost | 128kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo |
Klíčové vlastnosti
- Vidlice FOX 38 Perf. ELITE Grip X2 Air 170 mm
- FOX FLOAT X Nude EVOL Piggy Back, TracLoc, 150 mm
- SRAM S1000 Eagle AXS Transmission, 12 rychlostí
- Diskové brzdy Shimano SLX 4 Piston
- Kola Syncros Revelstoke-E 1.5
- Pláště Schwalbe Foldable
- Teleskopická sedlovka a komponenty Syncros
- Světlo integrované v zadním blatníku
- Bosch Performance CX Drive Unit with 800Wh Battery
Technologie

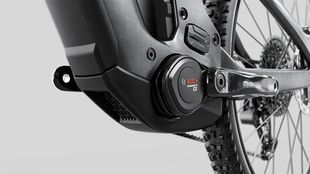

Motor & Battery
For the mountain biker looking to unlock new zones and ride more terrain than ever, the Patron eRIDE holsters the cutting edge of full-power motor and battery technology in a package built for singletrack domination. With the latest Bosch Performance CX drive unit paired with the 800Wh Powertube battery, the Patron is your ticket to freedom in the mountains.

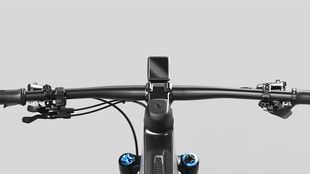

Handlebar Display
Connectivity, flexibility and visibility are the key words for the Kiox 300 and the LED Mini Remote. The Kiox is a 2’’ colored screen integrated in the stem. It displays all necessary info including speed, GPS, cadence and a Bluetooth connection to the eBike Flow App. You don’t want to have a screen on your handlebar? You can take it off and control everything from the LED remote or your phone. The new LED remote, displays the current charge status and allows an easy switch from one mode to the other. The ambient light sensor automatically controls the brightness of the LEDs. In order to minimize distractions when you’re getting rowdy, all ST models opt for just the Mini Remote and Sytem controller, without the addition of the display. All key metrics can still be tracked and displayed via a cycling computer of your choice.

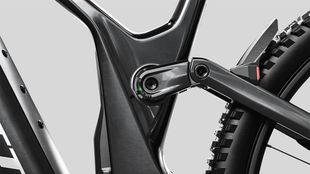

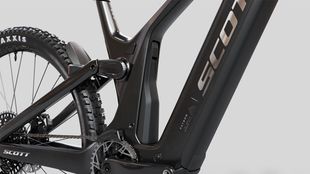

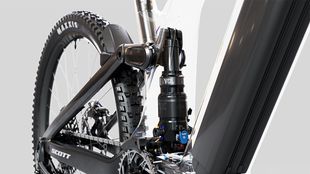

Patented Integrated Shock Technology
A stellar day on the trails begins with stellar suspension design, and the Patron’s 150mm of integrated travel will keep you tracking the ground smoothly no matter the terrain. Integrating the shock has allowed us to achieve desired shock characteristics, while also granting us the space to ideally position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a oush of the thumb, allowing you to match your suspension to the trail ahead.
Frame Construction
The Patron eRIDE lineup features carbon and alloy models, both meticulously engineered to harness the unique charactersitics of each material. Subjected to the highest degree of testing and numerous iterations in the development phase, the Patron eRIDE exhibits the perfect blend of stiffness and strength and weight distribution to lead to an unmatched ride feel - especially when things get rough.
Accessories & Compatibilities
Featuring tailor made details such as integrated fender and LED rear lights, the Patron eRIDE has been developed to be a “just get on and ride” kind of bike. To take this a step further, the Patron is pre-wired and ready for you to link up a front light to the main battery if you desire. A range of Syncros accessories are also available for the Patron eRIDE such as a kickstand, a rear rack or an action camera mount.

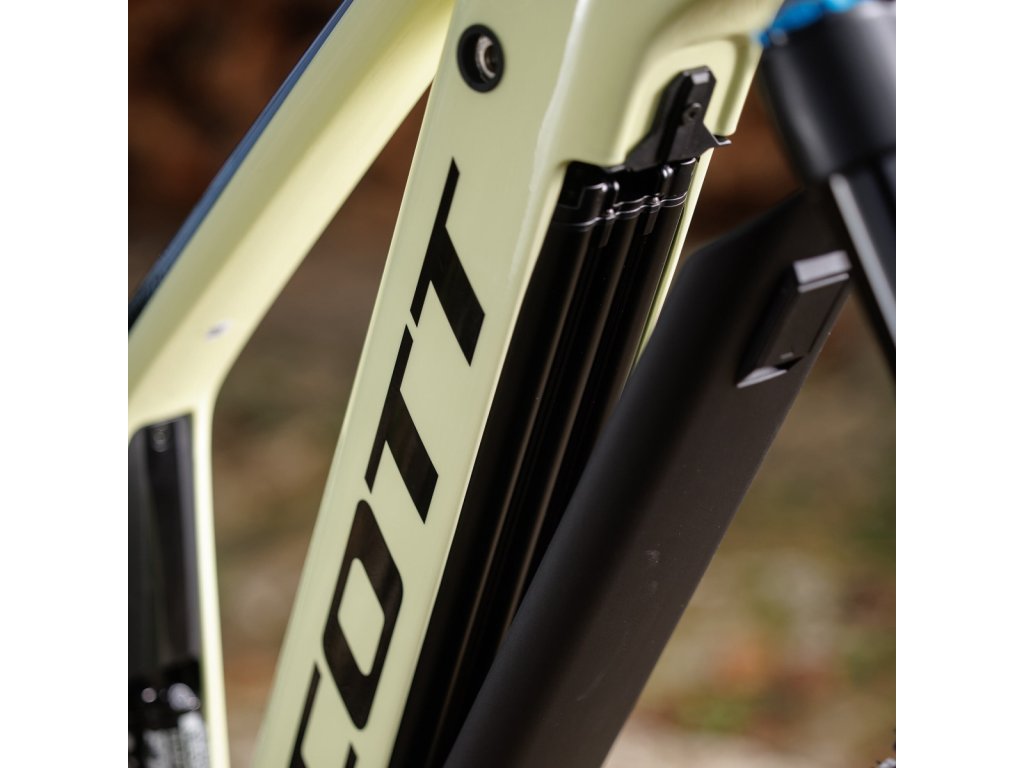

Cable Integration
Fact: With E-bikes come cables. Thankfully, on the Patron eRIDE, these are all cleanly integrated into the frame to hide them from sight, protect them from the elements and ensure no unnecessary bends impede on their function.
Geometrie rámu
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° | ||||||||||||||
| B | head tube length | 120.0 mm | 125.0 mm | 135.0 mm | 145.0 mm | ||||||||||||||
| C | top tube horizontal | 582.4 mm | 607.9 mm | 629.7 mm | 660.2 mm | ||||||||||||||
| D | standover height | 719.0 mm | 719.0 mm | 729.0 mm | 732.0 mm | ||||||||||||||
| E | BB offset | -28.4 mm | -28.4 mm | -28.4 mm | -28.5 mm | ||||||||||||||
| F | BB height | 348.6 mm | 348.6 mm | 348.6 mm | 348.5 mm | ||||||||||||||
| G | wheel base | 1,222.3 mm | 1,244.5 mm | 1,274.2 mm | 1,308.0 mm | ||||||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 405.0 mm | 435.0 mm | 470.0 mm | 500.0 mm | ||||||||||||||
| J | seat angle | 76.4 ° | 76.3 ° | 76.3 ° | 76.3 ° | ||||||||||||||
| K | chainstay | 454.0 mm | 454.0 mm | 454.0 mm | 454.0 mm | ||||||||||||||
| L | reach | 428.3 mm | 448.3 mm | 473.9 mm | 503.4 mm | ||||||||||||||
| M | stack | 650.5 mm | 655.0 mm | 664.2 mm | 673.3 mm | ||||||||||||||
| N | stem length | 50.0 mm | 50.0 mm | 50.0 mm | 50.0 mm | ||||||||||||||
| 0 | trail | 127.9 mm | 127.9 mm | 127.9 mm | 127.9 mm | ||||||||||||||
| P | Fork length | 584.0 mm | 584.0 mm | 584.0 mm | 584.0 mm | ||||||||||||||
| Q | Maximum Seatpost Insertion | 200.0 mm | 230.0 mm | 265.0 mm | 295.0 mm | ||||||||||||||
| R | Crank Length | 165.0 mm | 165.0 mm | 165.0 mm | 165.0 mm | ||||||||||||||
Doplňkové parametry
| Kategorie: | Celoodpružená |
|---|---|
| EAN: | 7616185216735 |
| Modelový rok: | 2025 |
