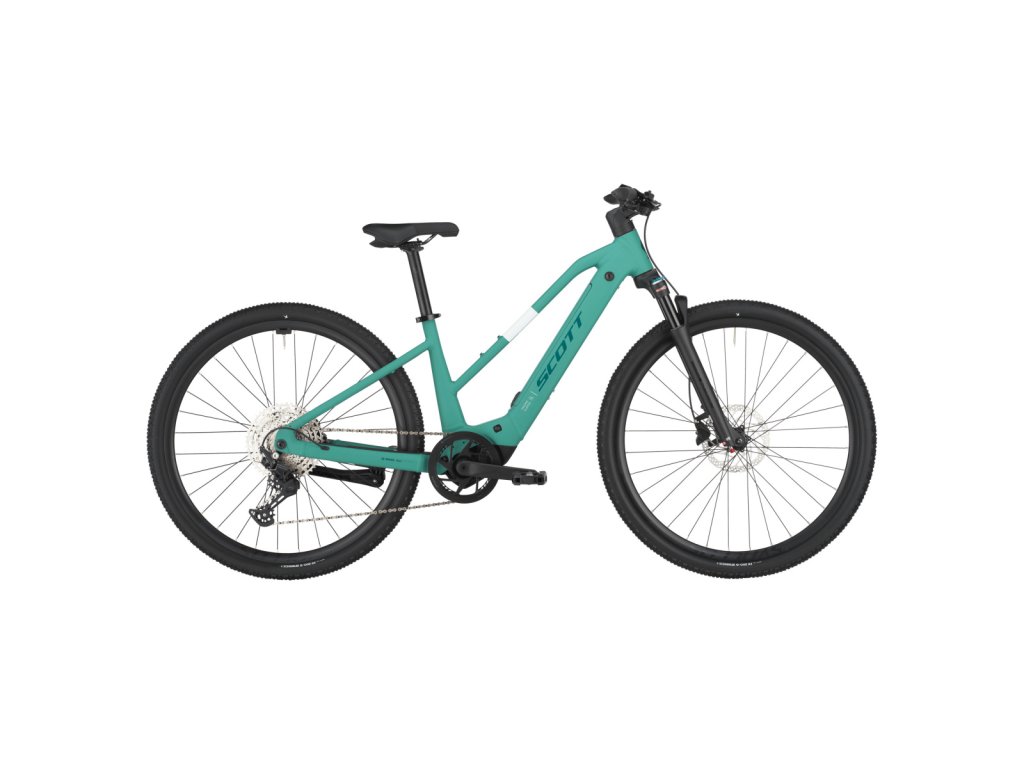

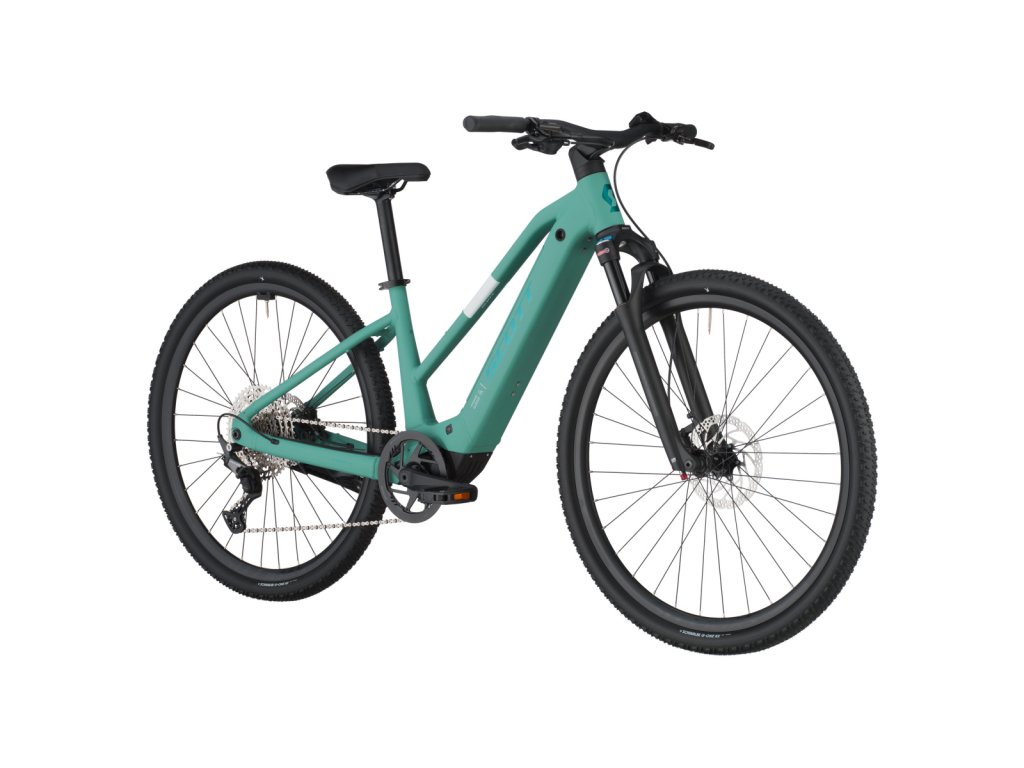

SCOTT PASSAGE 20 SLOPE AVENTURINE GREEN, vel. M
Kód: SCO4234528128008Související produkty
Detailní popis produktu
Specifikace
| Rám | Alloy S-L=29" / 6061 Alloy custom butted tubing Top extraction battery |
|---|---|
| Zdvih | 75mm |
| Vidlice | SR Suntour NRX32-E Air LO R / Tapered / 15x100 bolt Axle / Remote Lock Out / Alloy Steerer / 75mm Travel |
| Pohonná jednotka | Bosch Performance SX EU: 25kmh |
| Baterie | Compact Tube 400Wh |
| Displej | Bosch Purion 200 |
| Nabíječka | 2A Charger |
| Přehazovačka | Shimano Deore RD M6100SGS 12 Speed |
| Řazení | Shimano Deore SL-M6100RA |
| Kliky | FSA CK-220 170mm |
| Převodník | FSA 38T w/Chain Guard |
| Řetěz | KMC E12S |
| Kazeta | Shimano CS-M6100-12 10-51T |
| Brzdy | Shimano BR-MT200 Disc |
| Rotor | Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm |
| Řidítka | Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount |
| Sedlovka | Syncros M3.0 / 31.6 |
| Sedlovka | Syncros Capilano |
| Hlavové složení | Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm |
| Přední náboj | Shimano HBTC50015B CL / 15x100mm |
| Zadní náboj | Shimano FHTC500MSB CL / 12x142mm |
| Výplet | Black Spokes |
| Ráfky | Syncros X15 Disc |
| Přední plášť | Schwalbe G-One RX Performance 700x50C |
| Zadní plášť | Schwalbe G-One RX Performance 700x50C |
| Pedály | Marwi SP-827 |
| Extra | Hebie Kickstand |
| Hmotnost v kg (cca) | 20.5 |
| Hmotnost v lb (cca) | 45.19 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo |
Klíčové vlastnosti
- Shimano Deore 12 rychlostí
- Diskové brzdy Shimano
- Stojánek Hebie, komponenty Syncros
Technologie
BOSCH SX - 400 WH BATTERY
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. The Performance Line SX drive unit with 55Nm – the lightest drive unit from Bosch - is extremely compact, sporty, and paired with the integrated 400 WH CompactTube battery make Passage a lightweight, yet powerful driven e-bike, easy to carry on the stairs. The e-bike is also compatible with the Bosch PowerMore 250 range extender.
SYNCROS ALLOY COCKPIT
The new Syncros combo features a single-piece design with an integrated display, front light and cables, creating a sleek and aesthetically appealing handlebar.
TWO FRAME SHAPES
With diverse needs in mind, we have designed the bike’s geometry with two frame shapes, a more classic frame and a step-through. Pick the one that best suits you.
Geometrie rámu
| S / 900 | M / 900 | L / 900 | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 68.0 ° | 68.0 ° | 68.0 ° | |||||||||||||||
| B | head tube length | 110.0 mm | 120.0 mm | 130.0 mm | |||||||||||||||
| C | top tube horizontal | 580.0 mm | 600.0 mm | 620.0 mm | |||||||||||||||
| D | standover height | 655.0 mm | 655.0 mm | 670.0 mm | |||||||||||||||
| E | BB offset | -55.0 mm | -55.0 mm | -55.0 mm | |||||||||||||||
| F | BB height | 307.0 mm | 307.0 mm | 307.0 mm | 0.0 mm | ||||||||||||||
| G | wheel base | 1,160.8 mm | 1,182.1 mm | 1,203.3 mm | |||||||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 400.0 mm | 440.0 mm | 490.0 mm | |||||||||||||||
| J | seat angle | 75.0 ° | 75.0 ° | 75.0 ° | |||||||||||||||
| K | chainstay | 475.0 mm | 475.0 mm | 475.0 mm | |||||||||||||||
| L | reach | 419.3 mm | 436.8 mm | 454.4 mm | |||||||||||||||
| M | stack | 599.6 mm | 608.9 mm | 618.2 mm | |||||||||||||||
| N | stem length | 70.0 mm | 70.0 mm | 70.0 mm | |||||||||||||||
| 0 | trail | 96.6 mm | 96.6 mm | 96.6 mm | |||||||||||||||
Doplňkové parametry
| Kategorie: | Dámská |
|---|---|
| EAN: | 7616185215851 |
| Modelový rok: | 2025 |
