    Domů / AKČNÍ NABÍDKA / SCOTT CONTESSA ACTIVE eRIDE 920

    SCOTT CONTESSA ACTIVE eRIDE 920

    Kód: SCO280755008
    Akce Tip
    Značka: Scott
    83 990 Kč –17 %
    SCOTT CONTESSA ACTIVE eRIDE 920
    83 990 Kč –17 % 69 990 Kč
    Na dotaz
    Velikost
    Zvolená varianta není k dispozici. Reset vybraných parametrů.

     AKČNÍ CENA PLATÍ PŘI PLATBĚ V HOTOVOSTI



    Manual.pdf

    Manual Bosch Purion.pdf

    Detailní informace

    Detailní popis produktu

    Specifikace

    Rám Alloy frame Bended TT Tapered Headtube E2 Custom butted tubing / internal cable routing Bosch Gen4 / Integr. removable Battery / Boost 148x12mm DO Kickstand mount / Range Booster Ready
    Travel 120mm
    Vidlice SR Suntour XCM34 Coil 15x110mm QR axle / Tapered Steerer Remote Lockout / 120mm travel
    Systém tlumení SR Suntour Remote
    Drive Unit Bosch Performance CX EU: 25kmh / US: 20mph
    Baterie PowerTube 500Wh
    Display Bosch Purion
    Charger 2A Charger
    Přehazovačka SRAM SX Eagle / 12 Speed
    Řazení SRAM SX Eagle Single Click
    Kliky FSA CK-220 / 165mm
    Převodník SRAM Eagle 36T DM w/CG / Steel
    Řetěz SRAM SX Eagle
    Kazeta SRAM PG1210 / 11-50 T
    Brzdy Shimano BR-MT200 Disc
    Rotor Front: SM-RT30 CL 180mm / Rear: RT-EM300 CL 180mm
    Řidítka Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise Syncros Women Comfort lock-on grips
    Představec Syncros 3.0 / 7° / Black
    Sedlovka Syncros 3.0 / 31.6mm
    Sedlo Syncros Savona 2.5 V-Concept
    Hlavové složení Syncros OE / Tapered 1.5"-1 1/8" semi integ. OD 50/62mm / ID 44/56mm
    Přední náboj Formula CL-811 / 15x110mm
    Zadní náboj Formula CL-148S / Boost 148x12mm
    Výplet Stainless Black
    Ráfky Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
    Front Tire Kenda Booster 29x2.6" / 30TPI
    Rear Tire Kenda Booster 29x2.6" / 30TPI
    Světla Bosch Light Cable pre-installed F&R
    Hmotnost v kg cca 23.40
    Max. System Weight 128 kg The overall weight includes the bike the rider the equipment and possible additional luggage.

    Klíčové vlastnosti

    1. Aspect eRIDE Alloy Frame
    2. SR Suntour 120mm
    3. SRAM SX Eagle 12 Speed
    4. Bosch CX, PowerTube up to 1125Wh
    5. Shimano Disc Brakes
    6. Kenda Tires
    7. Syncros Parts
    8. Bosch Light Cable F&R

    Technologie

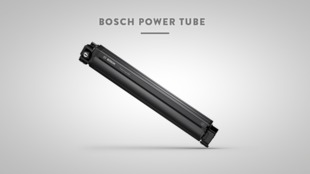

    BOSCH POWER TUBE

    Thanks to their range, long service life, intelligent battery management system and easy handling, Bosch Power Tube lithium-ion batteries are among the most modern on the market. All those decades of Bosch experience has paid off! Most of our frames are compatible with a 625Wh battery, so feel free to upgrade your 400 or 500Wh for a bigger Power Tube.

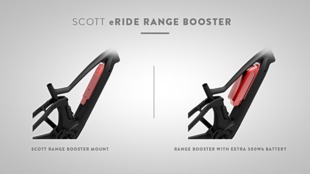

    SCOTT eRIDE RANGE EXTENDER- MTB

    SCOTT eRIDE engineering team has developed a specific mount which is fixed on the bottle cage slots. A standard 500Wh Bosch battery can be added on the Range Extender mount. This result in a total of 1125Wh. To recharge, just one charger is needed. The Bosch digital display will take into consideration both batteries. Focus on your journey and not on your battery level! Compatible with the Genius/Strike/Aspect/Axis eRIDE.

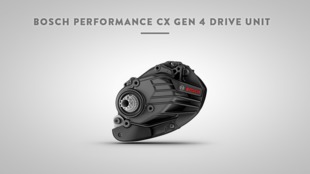

    BOSCH PERFORMANCE CX GEN 4 DRIVE UNIT

    The new Performance CX generation is now 48% smaller and 25% lighter compare to the previous generation. More compact but no less powerful, the new Bosch Performance CX Generation 4 comes with a maximum power output of 75Nm and 340%. Choose between 5 assist modes or opt for the comfort of the eMTB mode which automatically adapts the assistance like an automatic gearbox does in a car.

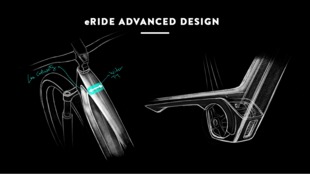

    eRIDE ADVANCED DESIGN

    With this new E-Bike generation, the design has been pushed further than ever before. More than a battery integrated into the frame, we see the bike as a system where every part must be taken into consideration. Therefore, to improve the integration, we have worked a lot on the line continuity but also on the design balance from the headtube to the dropouts. Enjoy a bike with a unique character!

    Rack & fenders

    Feel free to install a rack and the corresponding fender set. The frame has dedicated fixation points for a clean and reliable solution. Racks and fenders are available on the Accessories page of the website.

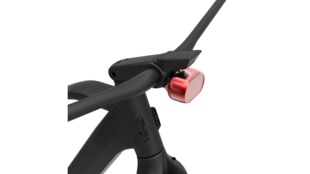

    Light ready

    In order to mount a front or rear light, we have already routed the cables in the frame, and there is no need for an extra battery – the power comes straight from the drive unit battery.

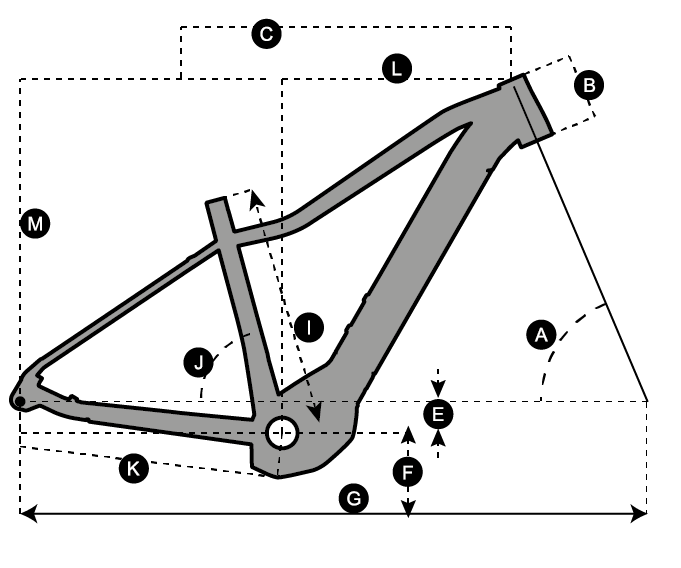

    Geometrie rámu

    XS S / 700 M / 900 L / 900
    A head tube angle 67.0 ° 67.0 ° 67.0 ° 67.5 °
    B head tube length 110.0 mm 4.3 in 110.0 mm 4.3 in 120.0 mm 4.7 in 130.0 mm 5.1 in
    C top tube horizontal 580.0 mm 22.8 in 580.0 mm 22.8 in 600.0 mm 23.6 in 620.0 mm 24.4 in
    D standover height 741.0 mm 29.2 in 766.0 mm 30.2 in 771.0 mm 30.4 in 800.0 mm 31.5 in
    E BB offset -57.0 mm -2.2 in -57.0 mm -2.2 in -57.0 mm -2.2 in -57.0 mm -2.2 in
    F BB height 320.0 mm 12.6 in 320.0 mm 12.6 in 320.0 mm 12.6 in 320.0 mm 12.6 in
    G wheel base 1,165.2 mm 45.9 in 1,165.2 mm 45.9 in 1,186.4 mm 46.7 in 1,201.8 mm 47.3 in
    H BB center to toptube center
    I BB center to top of seattube 355.0 mm 14.0 in 400.0 mm 15.7 in 440.0 mm 17.3 in 480.0 mm 18.9 in
    J seat angle 74.0 ° 74.0 ° 74.0 ° 74.0 °
    K chainstay 480.0 mm 18.9 in 480.0 mm 18.9 in 480.0 mm 18.9 in 480.0 mm 18.9 in
    L reach 398.6 mm 15.7 in 398.6 mm 15.7 in 416.0 mm 16.4 in 432.6 mm 17.0 in
    M stack 632.0 mm 24.9 in 632.0 mm 24.9 in 642.0 mm 25.3 in 653.0 mm 25.7 in
    N stem length
    0 trail 114.4 mm 4.5 in 114.4 mm 4.5 in 114.4 mm 4.5 in 110.7 mm 4.4 in

    Doplňkové parametry

    Kategorie: AKČNÍ NABÍDKA
    Modelový rok: 2021
