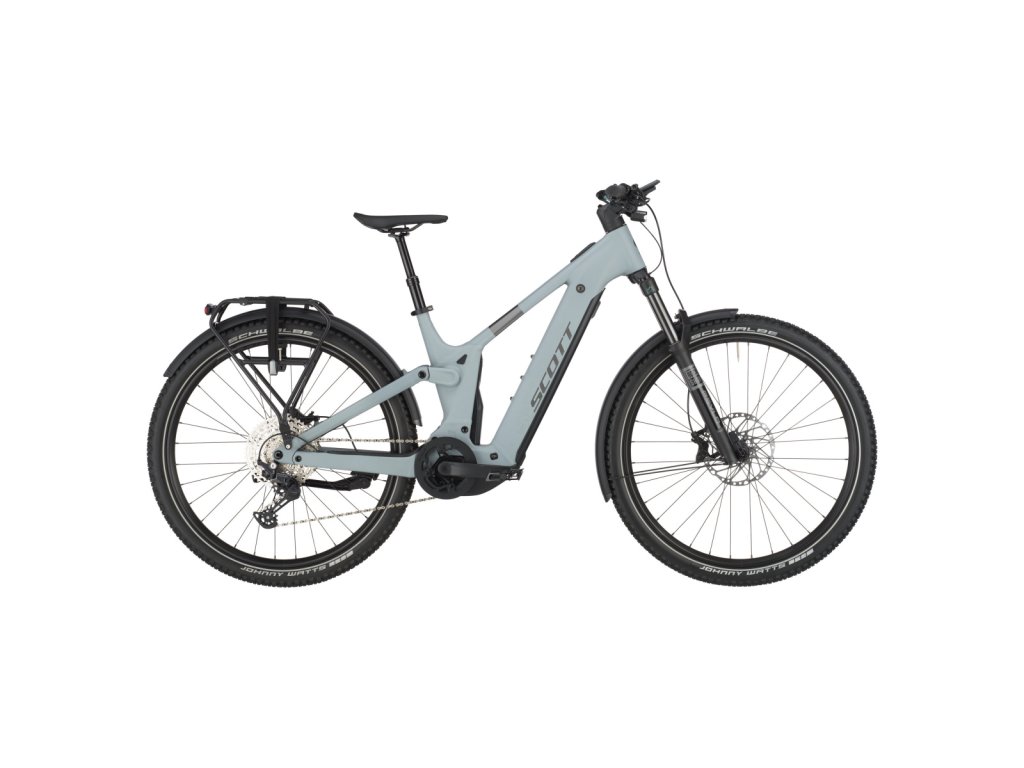

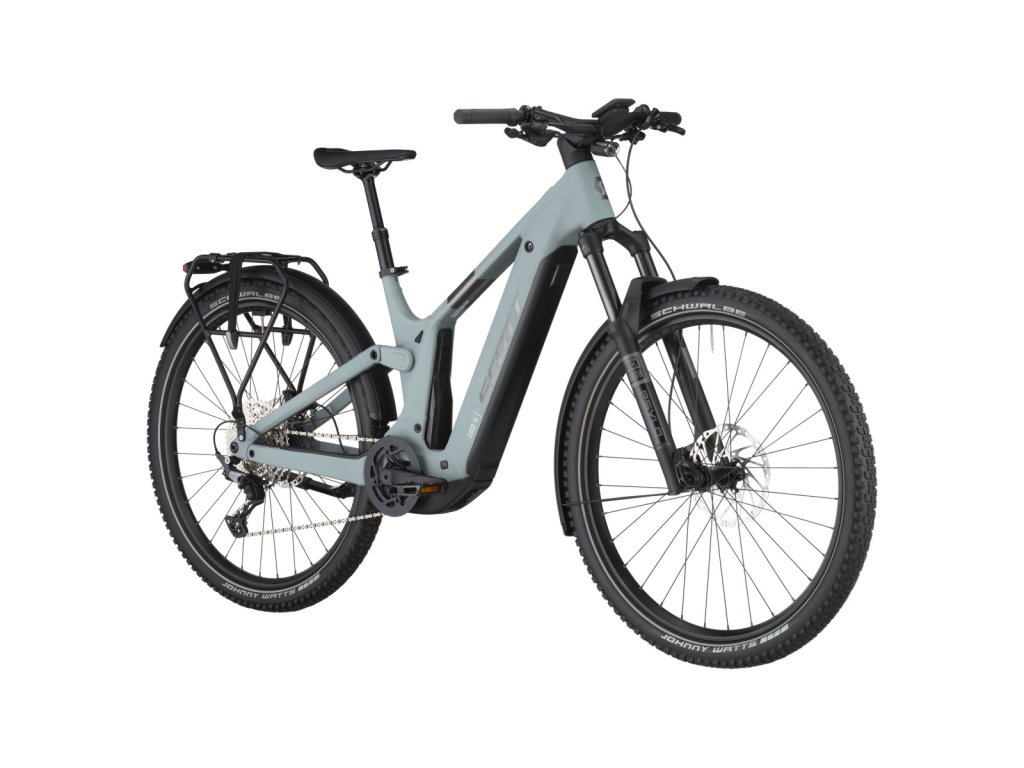

    SCOTT AXIS FS 20 SHARK GREY, vel. L

    Kód: SCO4233127842010
    Akce Tip
    ZDARMAZDARMA
    6747f43decb425aefea6bfbb0ae0da30 4233127842
    164 290 Kč
    Na externím skladě EU

    AKČNÍ CENA PLATÍ PŘI PLATBĚ BANKOVKAMI V HOTOVOSTI NEBO QR KÓDEM

    Detailní informace

    Související produkty

    Akce Tip
    ZDARMAZDARMA
    SCOTT AXIS FS 20 SHARK GREY, vel. M
    Na externím skladě EU
    164 290 Kč

    AKČNÍ CENA PLATÍ PŘI PLATBĚ BANKOVKAMI V HOTOVOSTI NEBO QR KÓDEM

    SCO4233127842008
    Akce Tip
    ZDARMAZDARMA
    SCOTT AXIS FS 20 SHARK GREY, vel. XL
    Na externím skladě EU
    164 290 Kč

    AKČNÍ CENA PLATÍ PŘI PLATBĚ BANKOVKAMI V HOTOVOSTI NEBO QR KÓDEM

    SCO4233127842012

    Detailní popis produktu

    Specifikace

    Rám Alloy S-XL=29" Integrated Suspension Technology Virtual 4 Link kinematic, Adjustable head angle Syncros Cable Integration System Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
    Zdvih Front: 140mm, Rear: 140mm
    Vidlice RockShox Psylo Silver RC Solo Air, E-Bike, Remote Motion Control Damper 2P, QR Axle 15x110mm axle 44mm offset, tapered steerer, 140mm travel
    Tlumič X-Fusion Nude RLX Trunnion 185x47 5mm, 2P, Remote Ready, 140mm Travel
    Ovládací systém SCOTT TwinLoc Remote 2P
    Pohonná jednotka Bosch Performance Line CX (BDU384Y) EU: 25kmh
    Baterie PowerTube 800Wh
    Displej Bosch System Controller Intuvia 100 Mini remote
    Nabíječka 2A Charger
    Přehazovačka Shimano Deore RD M6100SGS 12 Speed
    Přesmykač SCOTT Chainguide
    Řazení Shimano Deore SL-M6100RA
    Kliky FSA CK-745 165mm
    Převodník FSA 36T w/Chain Guard
    Řetěz KMC E12S
    Kazeta Shimano CS-M6100-12 10-51T
    Brzdy Shimano BR-MT520 4 Piston Disc Brakes
    Rotor Front: SM-RT64 CL 203mm, Rear: SM-RT64 CL 203mm
    Řidítka Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount and Intuvia 100 mount
    Sedlovka Syncros Duncan Dropper Post 2.5 31.6mm, S&M 361mm, L&XL 403mm
    Sedlovka Syncros Tofino E 2.0
    Hlavové složení Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
    Přední náboj Formula CL-811, 15x110mm
    Zadní náboj Formula CL-148M, Boost 12x148mm
    Výplet Sapim double butted
    Ráfky Syncros MD30, 32H, 30mm, Pin Joint Tubeless ready
    Přední plášť Schwalbe Advancer 60-622 Wired
    Zadní plášť Schwalbe Advancer 60-622 Wired
    Světla Lezyne Fusion E550SM front light Rear Lezyne Superbright
    Nosič & blatníky Racktime SnapIt 2.0 15KG
    Pedály VP VPE-506
    Extra Curana alloy profile Fender Ursus Kickstand
    Hmotnost v kg (cca) 28.8
    Hmotnost v lb (cca) 63.49
    Max. systémová hmotnost 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo

    Klíčové vlastnosti

    1. Vidlice Rock Shox Psylo, specifická pro e-kola, zdvih 140 mm
    2. Tlumič X-Fusion Nude, vidlice se zdvihem 140 mm
    3. SCOTT TwinLoc Remote
    4. Shimano Deore 12 rychlostí
    5. Diskové brzdy Shimano
    6. Hliníkové blatníky Curana
    7. Přední a zadní světlo Lezyne
    8. Kompatibilní se systémem Racktime Snap It 2.0, nosnost 15 kg
    9. Curana alloy fenders, Lezyne front and rear lights
    10. Racktime carrier Snap It 2.0 15KG

    Technologie

    AXIS FS FRAME

    The Axis FS features the same frame as the alloy version of the Patron eRide, one of our highest end eMTB’s. Subjected to the highest degree of testing and numerous iterations in the development phase, Axis FS exhibits the perfect blend of stiffness, strength and weight distribution resulting in an unmatched ride feel.

    INTEGRATED SUSPENSION TECHNOLOGY

    The Axis FS’s rear suspension is integrated into the frame. Not only does this give the bike a clean look, but it also has allowed us to achieve desired shock characteristics while granting us the space to strategically position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a touch of the thumb allowing you to adapt your suspension whenever you need it.

    BOSCH E-BIKE SYSTEM

    Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 800 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender.

    140MM TRAVEL AND DROPPER SEAT-POST

    The Axis FS is a versatile e-bike, with the capability to go on trails. Equipped with a 140mm front and rear travel, a dropper post to raise and lower your saddle more easily, and mtb tires, your ride is guaranteed to be a comfortable one both on the trail and in the city.

    REAR RACK, FENDERS, AND POWERFUL LIGHTS

    The Axis FS is equipped with all the features you need from your everyday companion, whether on trails or for grocery shopping. Strong Curana alloy fenders prevent you from getting dirty, powerful front and rear lights that allow you to see and be seen, a rear- rack compatible with SNAP IT 2.0 that supports up to 15kg.

    Geometrie rámu

    S M L XL
    A head tube angle 65.4 ° 65.4 ° 65.3 ° 65.3 °
    B head tube length 120.0 mm 4.7 in 125.0 mm 4.9 in 135.0 mm 5.3 in 145.0 mm 5.7 in
    C top tube horizontal 578.2 mm 22.8 in 604.5 mm 23.8 in 625.4 mm 24.6 in 655.8 mm 25.8 in
    D standover height 715.0 mm 28.1 in 715.0 mm 28.1 in 725.0 mm 28.5 in 728.0 mm 28.7 in
    E BB offset -37.3 mm -1.5 in -37.2 mm -1.5 in -37.0 mm -1.5 in -36.9 mm -1.5 in
    F BB height 339.7 mm 13.4 in 339.8 mm 13.4 in 340.0 mm 13.4 in 340.1 mm 13.4 in
    G wheel base 1,218.5 mm 48.0 in 1,240.7 mm 48.8 in 1,270.5 mm 50.0 in 1,304.3 mm 51.4 in
    H BB center to toptube center
    I BB center to top of seattube 405.0 mm 15.9 in 435.0 mm 17.1 in 470.0 mm 18.5 in 500.0 mm 19.7 in
    J seat angle 77.6 ° 77.4 ° 77.3 ° 77.3 °
    K chainstay 453.5 mm 17.9 in 453.5 mm 17.9 in 453.5 mm 17.9 in 453.5 mm 17.9 in
    L reach 440.5 mm 17.3 in 460.3 mm 18.1 in 485.7 mm 19.1 in 515.1 mm 20.3 in
    M stack 641.6 mm 25.3 in 646.0 mm 25.4 in 654.8 mm 25.8 in 663.5 mm 26.1 in
    N stem length 70.0 mm 2.8 in 70.0 mm 2.8 in 70.0 mm 2.8 in 70.0 mm 2.8 in
    0 trail 123.9 mm 4.9 in 124.0 mm 4.9 in 124.2 mm 4.9 in 124.4 mm 4.9 in
    P Fork length 561.0 mm 22.1 in 561.0 mm 22.1 in 561.0 mm 22.1 in 561.0 mm 22.1 in
    Q Maximum Seatpost Insertion 200.0 mm 7.9 in 230.0 mm 9.1 in 265.0 mm 10.4 in 295.0 mm 11.6 in
    R Crank Length 165.0 mm 6.5 in 165.0 mm 6.5 in 165.0 mm 6.5 in 165.0 mm 6.5 in

    Doplňkové parametry

    Kategorie: Pánská
    EAN: 7616185213246
    Modelový rok: 2025
