SCOTT AXIS FS 10 MARTIN GREEN, vel. L
Kód: SCO4233117961010Související produkty
Detailní popis produktu
Specifikace
| Rám | Alloy S-XL=29" Integrated Suspension Technology Virtual 4 Link kinematic, Adjustable head angle Syncros Cable Integration System Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready |
|---|---|
| Zdvih | Front: 140mm, Rear: 140mm |
| Vidlice | FOX AWL 34, Grip Remote Damper 3P, 4QR Axle 15x110mm axle 44mm offset, tapered steerer, 140mm travel |
| Tlumič | FOX Float eRIDE 185x47 5mm, 3P, Remote Ready, 140mm Travel |
| Ovládací systém | SCOTT TwinLoc Remote 3P |
| Pohonná jednotka | Bosch Performance Line CX (BDU384Y) EU: 25kmh |
| Baterie | PowerTube 800Wh |
| Displej | Bosch System Controller Kiox 300 Mini remote |
| Nabíječka | 4A Charger |
| Přehazovačka | Shimano XT RD M8100SGS 12 Speed |
| Přesmykač | SCOTT Chainguide |
| Řazení | Shimano XT SL-M8100IR |
| Kliky | FSA CK-745 165mm |
| Převodník | FSA 36T w/Chain Guard |
| Řetěz | KMC E12S |
| Kazeta | Shimano CS-M8100-12 10-51T |
| Brzdy | Magura MTC Allroad Disc Brakes, Bosch ABS Trail |
| Rotor | Front: MDR-C CL 203mm, Rear: MDR-C CL 203mm |
| Řidítka | Syncros Forged Alloy Combo 680mm, Back Sweep 9°, Up Sweep 8°, 70mm, with front Light mount and Kiox 300 mount |
| Sedlovka | Syncros Duncan Dropper Post 2.5 31.6mm, S&M 361mm, L&XL 403mm |
| Sedlovka | Syncros Tofino E 2.0 |
| Hlavové složení | Syncros - Acros Angle adjust & Cable Routing HS System Stainless, +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Přední náboj | Formula CL-811, 15x110mm |
| Zadní náboj | Formula CL-148M, Boost 12x148mm |
| Výplet | Sapim double butted |
| Ráfky | Syncros MD30, 32H, 30mm, Pin Joint Tubeless ready |
| Přední plášť | Schwalbe Advancer 60-622 Wired |
| Zadní plášť | Schwalbe Advancer 60-622 Wired |
| Světla | Lezyne Fusion E550SM front light Rear Supernova Taillight |
| Nosič & blatníky | Racktime SnapIt 2.0 15KG |
| Pedály | VP VPE-506 |
| Extra | Curana alloy profile Fender Ursus Kickstand |
| Hmotnost v kg (cca) | 29 |
| Hmotnost v lb (cca) | 63.93 |
| Max. systémová hmotnost | 130kg Celková hmotnost zahrnuje kolo, jezdce, vybavení\ a případné další zavazadlo |
Klíčové vlastnosti
- Vidlice FOX AWL 40, specifická pro e-kola, zdvih 140 mm
- Tlumič FOX Float eRIDE, vidlice se zdvihem 140 mm
- Patentovaný integrovaný tlumič SCOTT
- SCOTT TwinLoc Remote
- Shimano XT, 12 rychlostí
- Diskové brzdy Shimano
- Hliníkové blatníky Curana
- Přední světlo Lezyne / zadní Supernova integrované v nosiči
- Kompatibilní se systémem Racktime Snap It 2.0, nosnost 15 kg
- Racktime carrier Snap It 2.0 15KG
Technologie
AXIS FS FRAME
The Axis FS features the same frame as the alloy version of the Patron eRide, one of our highest end eMTB’s. Subjected to the highest degree of testing and numerous iterations in the development phase, Axis FS exhibits the perfect blend of stiffness, strength and weight distribution resulting in an unmatched ride feel.

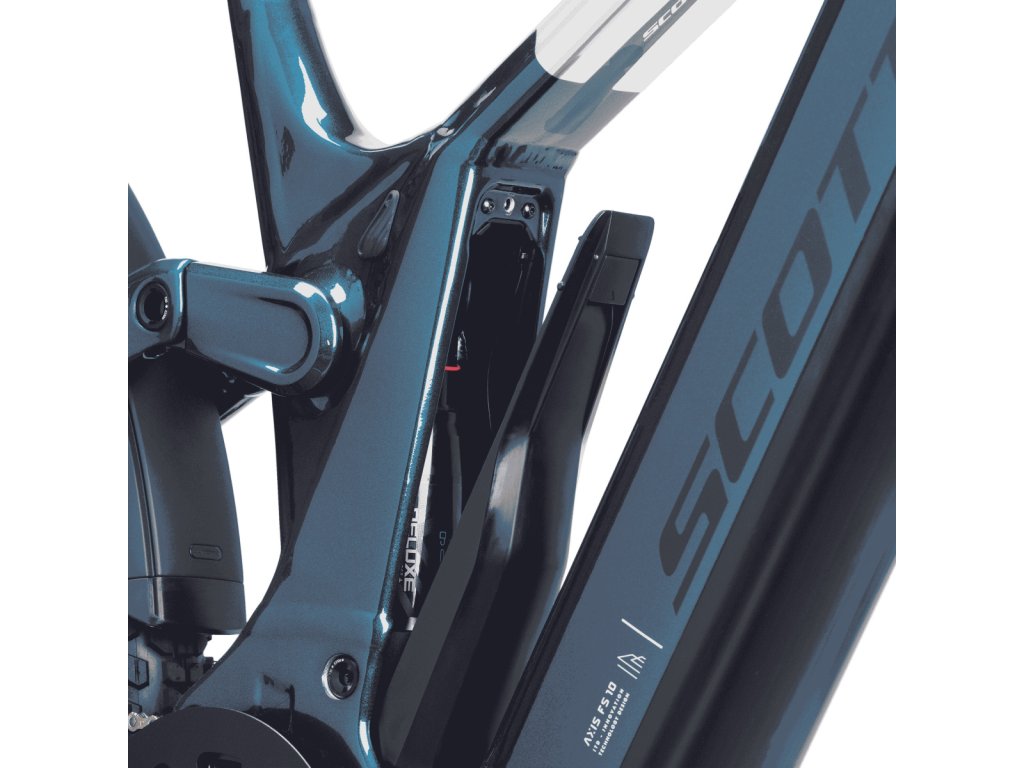

INTEGRATED SUSPENSION TECHNOLOGY
The Axis FS’s rear suspension is integrated into the frame. Not only does this give the bike a clean look, but it also has allowed us to achieve desired shock characteristics while granting us the space to strategically position elements such as the motor, the battery and a water bottle. Riding a range of varied terrain? The TracLoc remote on the handlebar alters suspension characteristics with just a touch of the thumb allowing you to adapt your suspension whenever you need it.

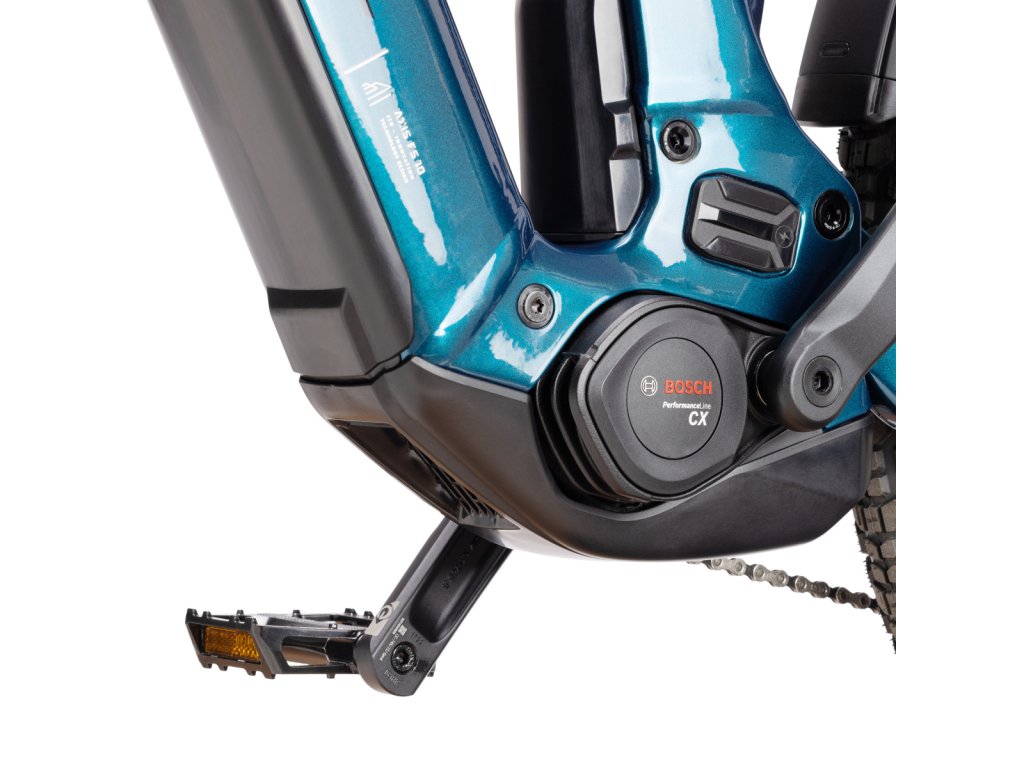

BOSCH E-BIKE SYSTEM
Reliability is key when it comes to e-Bike systems and Bosch is among the leaders. With the new Performance CX drive unit of 85 Nm, paired with the powerful, integrated PowerTube 800 WH battery, you can simply enjoy your ride. And if that’s still not enough, the e-bike is compatible with the Bosch PowerMore 250 range extender.
BOSCH E-BIKE ABS
We all know ABS from the car industry. Well, guess what? Now you can have it on your Axis FS. Synonymous with additional safety, stability, and comfort, it enables optimum braking, preventing crashing over the handlebar – even if suddenly you must brake hard.

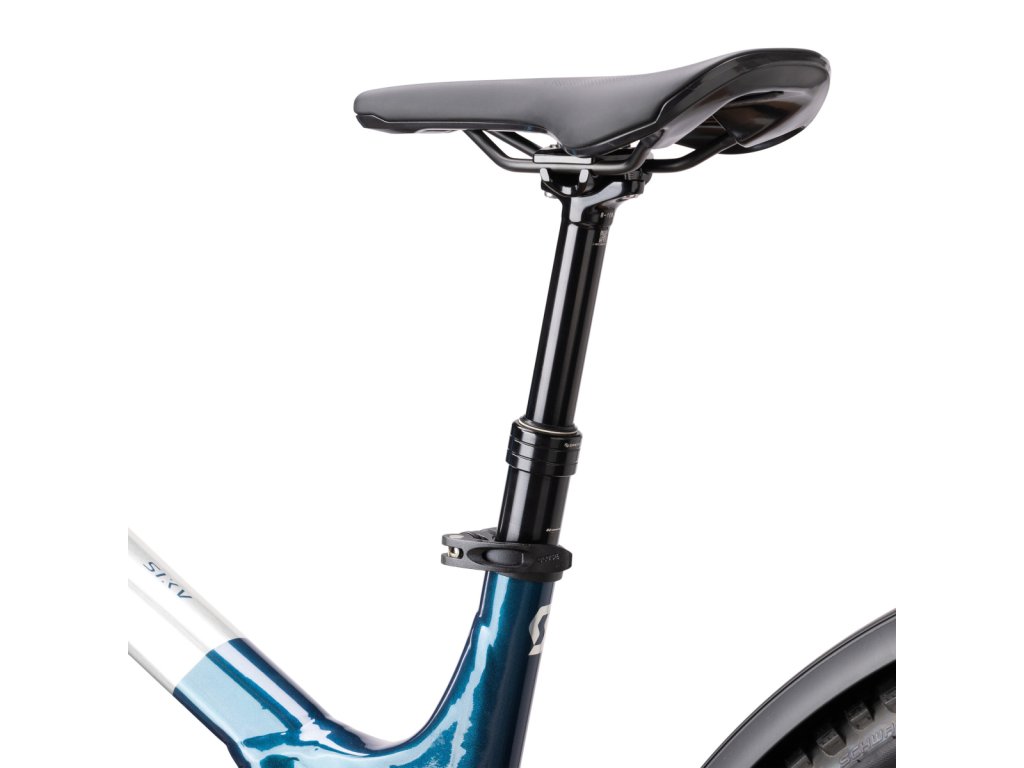

140MM TRAVEL AND DROPPER SEAT-POST
The Axis FS is a versatile e-bike, with the capability to go on trails. Equipped with a 140mm front and rear travel, a dropper post to raise and lower your saddle more easily, and mtb tires, your ride is guaranteed to be a comfortable one both on the trail and in the city.

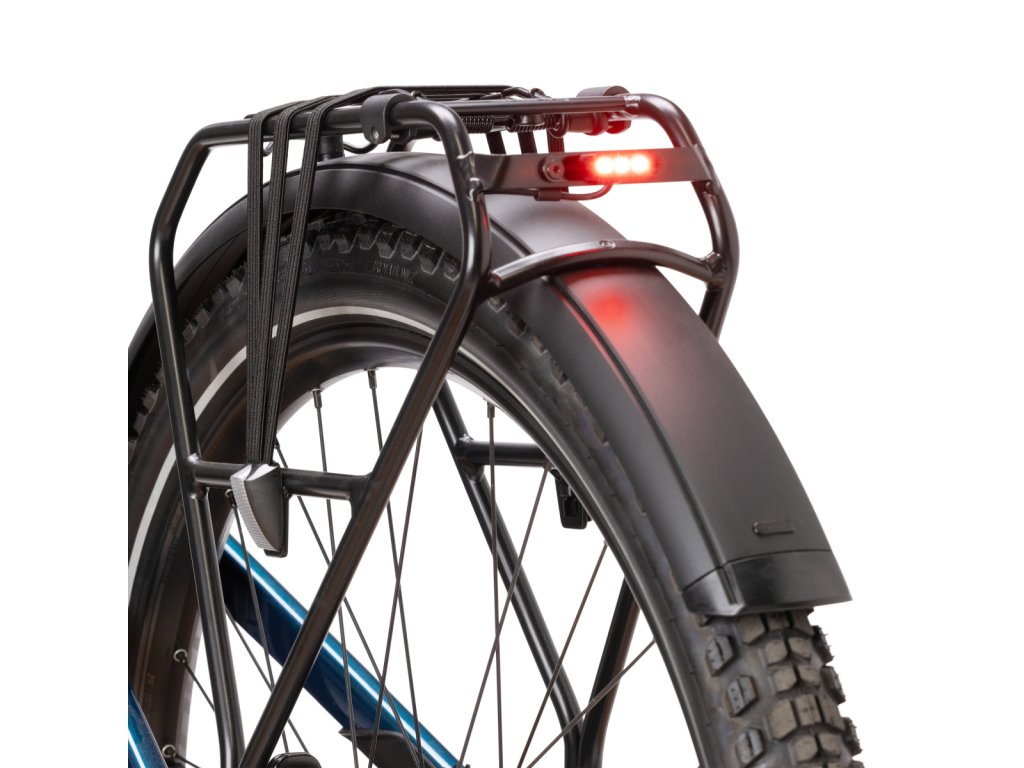

REAR RACK, FENDERS, AND POWERFUL LIGHTS
The Axis FS is equipped with all the features you need from your everyday companion, whether on trails or for grocery shopping. Strong Curana alloy fenders prevent you from getting dirty, powerful front and rear lights that allow you to see and be seen, a rear- rack compatible with SNAP IT 2.0 that supports up to 15kg.

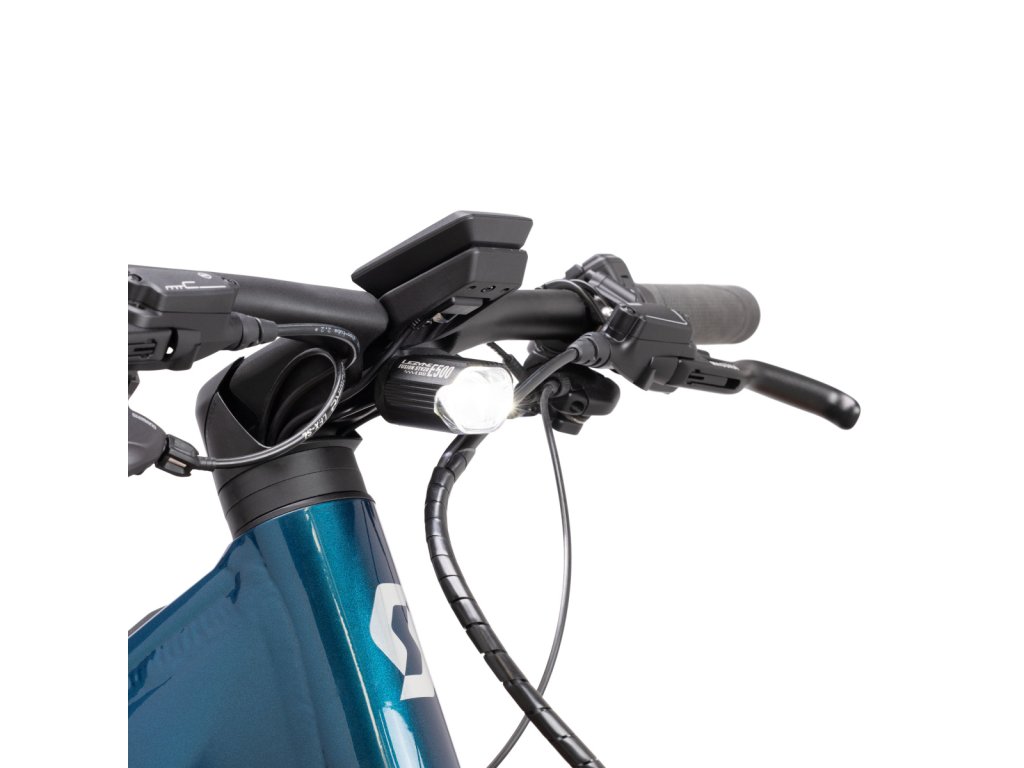

NEW SYNCROS COMBO
The new Syncros combo features a single-piece design with an integrated display, front light and cables, creating a sleek and aesthetically appealing handlebar. Axis FS features the Bosch Kiox 300 display and the LED Mini Remote. The Kiox is a 2” colored screen integrated in the stem. It displays all necessary info including speed, GPS, cadence and has a Bluetooth connection to the eBike Flow App. Don’t want to have a screen on your handlebar? You can take it off and control everything from the LED remote or your phone. The new LED remote displays the current charge status and allows an easy switch from one mode to the other. The ambient light sensor automatically controls the brightness of the LEDs.
Geometrie rámu
| S | M | L | XL | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | head tube angle | 65.4 ° | 65.4 ° | 65.3 ° | 65.3 ° | ||||||||||||||
| B | head tube length | 120.0 mm | 125.0 mm | 135.0 mm | 145.0 mm | ||||||||||||||
| C | top tube horizontal | 578.2 mm | 604.5 mm | 625.4 mm | 655.8 mm | ||||||||||||||
| D | standover height | 715.0 mm | 715.0 mm | 725.0 mm | 728.0 mm | ||||||||||||||
| E | BB offset | -37.3 mm | -37.2 mm | -37.0 mm | -36.9 mm | ||||||||||||||
| F | BB height | 339.7 mm | 339.8 mm | 340.0 mm | 340.1 mm | ||||||||||||||
| G | wheel base | 1,218.5 mm | 1,240.7 mm | 1,270.5 mm | 1,304.3 mm | ||||||||||||||
| H | BB center to toptube center | ||||||||||||||||||
| I | BB center to top of seattube | 405.0 mm | 435.0 mm | 470.0 mm | 500.0 mm | ||||||||||||||
| J | seat angle | 77.6 ° | 77.4 ° | 77.3 ° | 77.3 ° | ||||||||||||||
| K | chainstay | 453.5 mm | 453.5 mm | 453.5 mm | 453.5 mm | ||||||||||||||
| L | reach | 440.5 mm | 460.3 mm | 485.7 mm | 515.1 mm | ||||||||||||||
| M | stack | 641.6 mm | 646.0 mm | 654.8 mm | 663.5 mm | ||||||||||||||
| N | stem length | 70.0 mm | 70.0 mm | 70.0 mm | 70.0 mm | ||||||||||||||
| 0 | trail | 123.9 mm | 124.0 mm | 124.2 mm | 124.4 mm | ||||||||||||||
| P | Fork length | 561.0 mm | 561.0 mm | 561.0 mm | 561.0 mm | ||||||||||||||
| Q | Maximum Seatpost Insertion | 200.0 mm | 230.0 mm | 265.0 mm | 295.0 mm | ||||||||||||||
| R | Crank Length | 165.0 mm | 165.0 mm | 165.0 mm | 165.0 mm | ||||||||||||||
Doplňkové parametry
| Kategorie: | Pánská |
|---|---|
| EAN: | 7616185213192 |
| Modelový rok: | 2025 |
